Upper Air Fixtures (Majors)

Upper Air Fixtures, formally known as our Aristocrat Majors, were the first form of Air Sterilization and continue to be a reliable form of disinfection and purification. The Upper Air Fixture Series is a simple, yet highly effective line used in a variety of applications and industries -- from hospital rooms to labs, offices to cafeterias, trash rooms to commercial laundry, and more.

These units work by relying on germicidal ultraviolet lamps and the normal movement of air within a room. Due to this movement, ultraviolet lamps can be installed on walls well above eye level, allowing air to be treated near the ceiling and cycled to the lower portions of the room, all without exposing human occupants to the direct ultraviolet rays.

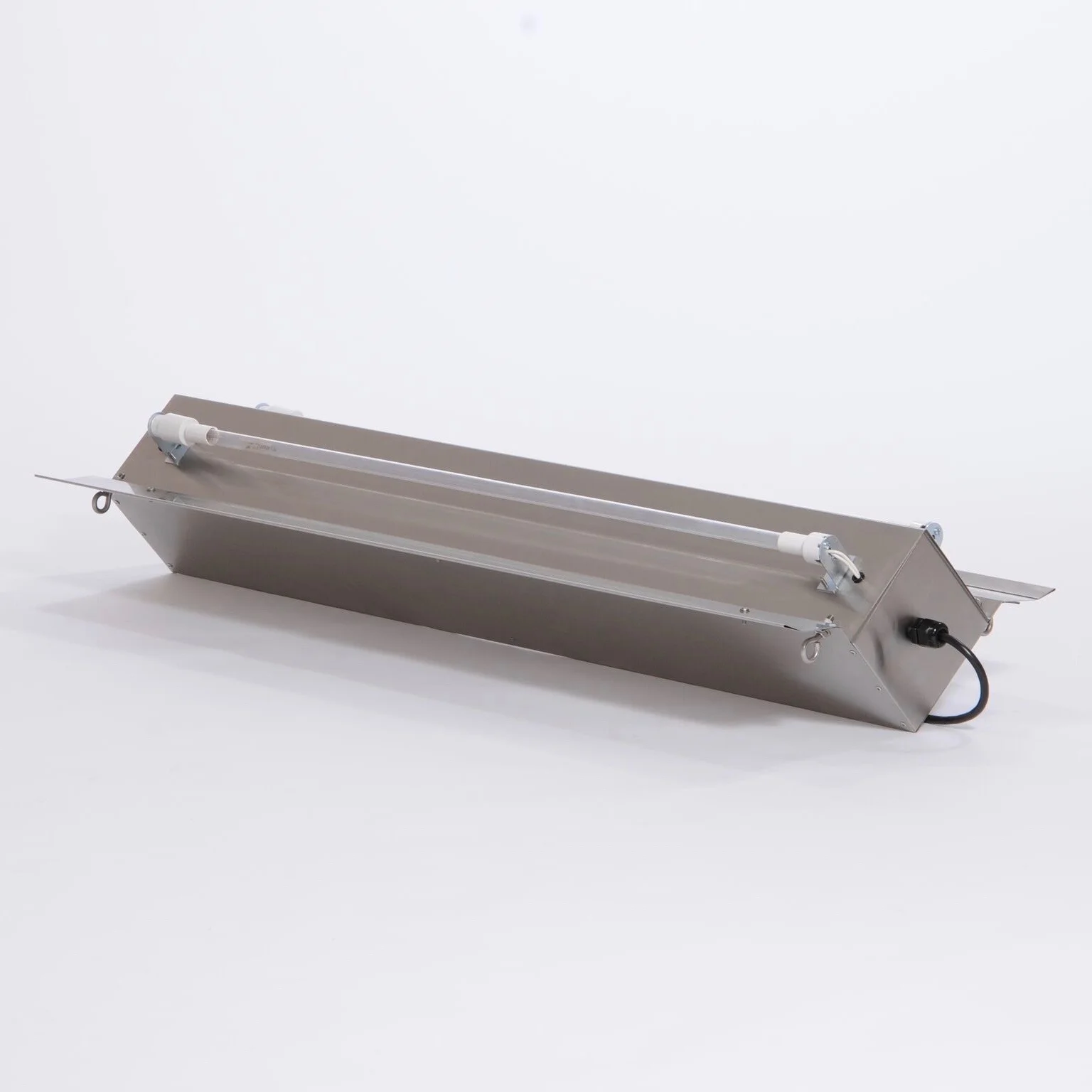

The Upper Air Fixture Series units are constructed of a reflective grade stainless steel and house all electrical components inside the fixture with quick access for maintenance. All units can be equipped with "wings," or extensions to target ultraviolet broadcasting areas around a specific location.


Overhead Fixture Models

FG 1136 Overhead Fixture

Lamp & Micro-Watts: 1 x 120 @ 1 Meter Lamp
Operating Temp: Room
Dimensions: 40" Long, 4" Wide, 4" High
Power Requirements: 120 V., 60 Hz., 1.0 A.

FG 1236 Overhead Fixture

Lamp & Micro-Watts: 2 x 120 @ 1 Meter Lamp
Operating Temp: Room
Dimensions: 40" Long, 8" Wide, 4" High
Power Requirements: 120 V., 60 Hz., 1.5 A.

FG 1436 Overhead Fixture

Lamp & Micro-Watts: 4 x 120 @ 1 Meter Lamp
Operating Temp: Room
Dimensions: 40" Long, 12" Wide, 4" High
Power Requirements: 120 V., 60 Hz., 2.5 A.

FG 1103 Overhead Fixture

Lamp & Micro-Watts: 1 x 73 @ 1 Meter Lamp
Operating Temp: Cold
Dimensions: 40" Long, 4" Wide, 4" High
Power Requirements: 120 V., 60 Hz., 1.0 A.

FG 1203 Overhead Fixture

Lamp & Micro-Watts: 2 x 73 @ 1 Meter Lamp
Operating Temp: Cold
Dimensions: 40" Long, 8" Wide, 4" High
Power Requirements: 120 V., 60 Hz., 1.5 A.

FG 1148A Overhead Fixture

Lamp & Micro-Watts: 1 x 164 @ 1 Meter Lamp
Operating Temp: Room
Dimensions: 50" Long, 4" Wide, 4" High
Power Requirements: 120 V., 60 Hz., 1.5 A.

FG 1248A Overhead Fixture

Lamp & Micro-Watts: 2 x 164 @ 1 Meter Lamp
Operating Temp: Room
Dimensions: 50" Long, 8" Wide, 4" High
Power Requirements: 120 V., 60 Hz., 3.0 A.


STANDARD SYSTEM COMPONENTS

  • Construction: 304 Stainless Steel
  • Electrical Service: 120 V. 60 Hz. with Cord
  • Lamps and Ballasts: UVC Lamps and Electronic Ballasts
  • Lamp Protection: Protective Lamp Jackets

CUSTOMIZABLE SYSTEM UPGRADES

  • Construction: 316 Stainless Steel for Corrosive Applications
  • Electrical Service: Other Voltages Available
  • System Monitoring: Lamp Monitoring System and Operational Hour Meter
